Helicoil Inch Kit

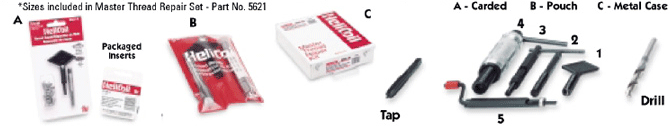

Heli-Coil has complete coverage of inch thread repair sizes. Available from stock are inch Coarse kits in sizes #8 through 1-1/2" and Inch Fine kits in sizes #10 through 1-1/2. Kits up to 3/4" are packaged in durable placon or vinyl pouches and kits 7/8" and larger are packaged in sturdy metal cases and contain the proper size high speed stell drill. All kits contain a Heli-Coil tap, installation tool, a quatity of inserts and detailed instructions.

INCH COARSE Kit Contents and Replacement Parts DRILL SIZE THREAD SIZE+LENGTH KIT PART NO. KIT PKG. TYPE INSERTS PER KIT TAP PART NO. INSTALLATION TOOL PART NO. TOOL TYPE PACKAGED INSERT PART NO. PACKAGED INSERT QTY. 8-32x.246 5521-2 A 12 819-2 2288-2 2 R1185-2 12 11/64 10-24x .285 5521-3 A 12 819-3 2288-3 2 R1185-3 12 13/64 12-24x .324 5521-1 A 12 819-1 2288-1 2 R1185-1 12 15/64 1/4-20x .375* 5521-4 A 12 819-4 2288-4 1 R1185-4 12 17/64 5/16-18x .469* 5521-5 A 12 819-5 2288-5 1 R1185-5 12 21/64 3/8-16x .562* 5521-6 A 12 819-6 2288-6 1 R1185-6 12 25/64 7/17-14x .656* 5521-7 A 6 819-7 2288-7 1 R1185-7 6 29/64 1/2-13x .750* 5521-8 A 6 819-8 2288-8 1 R1185-8 6 17/32 9/16-12x .844 5521-9 B 6 819-9 2288-9 2 R1185-9 6 19/32 5/8-11x .938 5521-10 B 6 819-10 2288-10 1 R1185-10 6 21/32 3/4-10x 1.125 5521-12 B 4 819-12 2288-12 2 R1185-12 4 25/32 THE FOLLOWING KITS COME COMPLETE WITH HIGH SPEED STEEL DRILL BIT FOR 1/2" CHUCK. 7/8-9x 1.312 5521-14 C 6 8187-14 3724-14 2 K1185-14 1 29/32 1-8x 1.500 5521-16 C 6 8187-16 3724-16 2 K1185-16 1 1-1/32 1-1/8-7x 1.688 5521-18 C 5 8187-18 3724-18 2 K1185-18 1 1-5/32 1-1/4-7x 1.875 5521-20 C 4 8187-20 3724-20 2 K1185-20 1 1-9/32 1-3/8-6x 2.062 5521-22 C 4 8187-22 3724-22 2 K1185-22 1 1-13/32 1-1/2-6x 2.250 5521-24 C 4 8187-24 3724-24 2 K1185-24 1 1-17/32

INCH FINE Kit Contents and Replacement Parts DRILL SIZE THREAD SIZE+LENGTH KIT PART NO. KIT PKG. TYPE INSERTS PER KIT TAP PART NO. INSTALLATION TOOL PART NO. TOOL TYPE PACKAGED INSERT PART NO. PACKAGED INSERT QTY. 10-32x.285* 5528-3 A 12 821-3 2299-3 3 R1191-3 12 13/64 1/4-28x .375** 5528-4 A 12 821-4 2299-4 3 R1191-4 12 17/64 5/16-24x .469** 5528-5 A 12 821-5 2299-5 3 R1191-5 12 21/64 3/8-24x .562** 5528-6 A 12 821-6 2299-6 3 R1191-6 12 25/64 7/16-20x .656** 5528-7 A 6 821-7 2299-7 3 R1191-7 6 29/64 1/2-20x .750** 5528-8 A 6 821-8 2299-8 3 R1191-8 6 33/64 9/16-18x .844 5528-9 B 6 821-9 2299-9 3 R1191-9 6 37/64 5/8-18x .938 5528-10 B 6 821-10 2299-10 3 R1191-10 6 41/64 3/4-18x 1.125 5528-12 B 4 821-12 2299-12 3 R1191-12 4 49/64 THE FOLLOWING KITS COME COMPLETE WITH HIGH SPEED STEEL DRILL BIT FOR 1/2" CHUCK. 7/8-14x 1.312 5521-14 C 6 8193-14 535-14 4 K1191-14 1 57/64 1-14x 1.500 5521-16 C 6 8193-16 535-16 4 K1191-16 1 1-1/64 1-12x 1.500 5521-161 C 6 8193-161 535-161 4 K1191-161 1 1-1/64 1-1/8-7x 1.688 5521-18 C 5 8193-18 535-18 4 K1191-18 1 1-5/32 1-1/4-7x 1.875 5528-20 C 4 8193-20 535-20 4 K1191-20 1 1-9/32 1-3/8-6x 2.062 5528-22 C 4 8193-22 535-22 4 K1191-22 1 1-13/32 1-1/2-6x 2.250 5528-24 C 4 8193-24 535-24 4 K1191-24 1 1-17/32

Inch Master Thread Repair Set

There are two master sets for inch sizes. The coarse set contain five sizes : 1/4, 5/16, 3/8, 7/16 and 1/2. The fine set has six sizes : #10, 1/4, 5/16, 3/8, 7/16 and 1/2.

THREAD SIZE+LENGTH PACKAGED INSERT PART NO. INSERT QUANTITY TAP PART NO. INSTALLATION TOOL PART NO. DRILL SIZE PART NO. 5621 - INCH COARSE CONTENTS 1/4-20 x .375 R1185-4 12 819-4 5288-4 17/64 5/16-18 x .469 R1185-5 12 819-5 5288-5 21/64 3/8-16 x .562 R1185-6 12 819-6 5288-6 25/64 7/16-14 x .656 R1185-7 6 819-7 5288-7 29/64 1/2-13 x .750 R1185-8 6 819-8 5288-8 17/32 PART NO. 5625 - INCH FINE CONTENTS 10-32 x .285 R1191-3 12 821-3 2299-3 13/64 1/4-28 x .375 R1191-4 12 821-4 2299-4 17/64 5/16-24 x .469 R1191-5 12 821-5 2299-5 21/64 3/8-24 x .562 R1191-6 12 821-6 2299-6 25/64 7/16-20 x .656 R1191-7 6 821-7 2299-7 29/64 1/2-20 x .750 R1191-8 6 821-8 2299-8 33/64   helicoil, ,helicoil kit, helicoil tool kit ,helicoil thread repair kit , thread repair kit, helicoil tool kit , helicoil tool holder, helicoil thread repair, helicoil & tools, tool kit, helicoil thread repair insert ,thread repair , helicoil metric kit , helicoil inch kit, helicoil unc unf kit , helicoil bsw kit , helicoil bsf kit , helicoil bspf kit , helicoil bsf kit , helicoil npt kit , helicoil bspt kit , helicoil unef kit, helicoil unjf kit, helicoil unjc kit , helicoil mj kit , helicoil mjf kit
