Helicoil Thread Gauge

Accuracy of the finished thread when the insert is installed is dependent upon the accuracy of the tapped hole. If the finished tapped hole gages satisfactorily, the installed insert will be within the thread tolerance. It is not necessary to gage the installed insert. After the insert is installed, the GO thread plug gage may not enter freely; however, the insert will always seat itself when the bolt or screw is installed and tightened. (Reference NASM33537). Gage handles and all gage nibs are marked with the extreme product limits for the particular size and class of fit. (See Pages 20 & 21, Tables VII & VIII, Pitch Diameter Limits). When gaging tapped holes which have been thoroughly cleaned or which have a protective finish applied, the gage should always be lubricated with light oil. Working gages provide a guaranteed minimum wear allowance on the pitch diameter of the GO members of two ten thousandths of an inch (.0002). These gages are recommended for production insize 1/2 inch and smaller. Reference gages have pitch diameters on or close to minimum (basic size). They are essentially laboratory or master gages and should be used in case of conflict between two working gages. Conflict can occur when one of the gages has experienced more use and wear.

Nominal Thread Size WORKING GAGES REFERENCE GAGES Suggested for Longer Wear Life Suggested as Master Gages 3B 2B 3B 2B UNIFIED COARSE THREAD (UNC) 1(.073)-64 3688-01 1442-01 1688-01 1440-01 2(.086)-56 3688-02 1442-02 1688-02 1440-02 3(.099)-48 3688-03 1442-03 1688-03 1440-03 4(.112)-40 3688-04 1442-04 1688-04 1440-04 5(.125)-40 3688-05 1442-05 1688-05 1440-05 6(.138)-32 3688-06 1442-06 1688-06 1440-06 8(.164)-32 3688-2 1442-2 1688-2 1440-2 10(.190)-24 3688-3 1442-3 1688-3 1440-3 12(.216)-24 3688-1 1442-1 1688-1 1440-1 1/4(.2500)-20 3688-4 1442-4 1688-4 1440-4 5/16(.3125)-18 3688-5 1442-5 1688-5 1440-5 3/8(.3750)-16 3688-6 1442-6 1688-6 1440-6 7/16(.4375)-14 3688-7 1442-7 1688-7 1440-7 1/2(.5000)-13 3688-8 1442-8 1688-8 1440-8 9/16(.5625)-12     1688-9 1440-9 5/8(.6250)-11     1688-10 1440-10 3/4(.7500)-10     1688-12 1440-12 7/8(.8750)-9     1688-14 1440-14 1(1.000)-8     1688-16 1440-16 1-1/8(1.1250)-7     1688-18 1440-18 1-1/4(1.2500)-7     1688-20 1440-20 1-3/8(1.3750)-6     1688-22 1440-22 1-1/2(1.5000)-6     1688-24 1440-24 UNIFIED FINE THREAD (UNF) 2(.086)-64 3694-02 1443-02 1694-02 1441-02 3(.099)-56 3694-03 1443-03 1694-03 1441-03 4(.112)-48 3694-04 1443-04 1694-04 1441-04 6(.138)-40 3694-06 1443-06 1694-06 1441-06 8(.164)-36 3694-2 1443-2 1694-2 1441-2 10(.190)-32 3694-3 1443-3 1694-3 1441-3 1/4(.2500)-28 3694-4 1443-4 1694-4 1441-4 5/16(.3125)-24 3694-5 1443-5 1694-5 1441-5 3/8(.3750)-24 3694-6 1443-6 1694-6 1441-6 7/16(.4375)-20 3694-7 1443-7 1694-7 1441-7 1/2(.5000)-20 3694-8 1443-8 1694-8 1441-8 9/16(.5625)-18     1694-9 1441-9 5/8(.6250)-18     1694-10 1441-10 3/4(.7500)-16     1694-12 1441-12 7/8(.8750)-14     1694-14 1441-14 1(1.000)-14     1694-16 1441-16 1(1.000)-12     1694-161 1441-161 1-1/8(.1250)-12     1694-18 1441-18 1-1/4(1.2500)-12     1694-20 1441-20 1-3/8(1.3750)-12     1694-22 1441-22 1-1/2(1.5000)-12     1694-24 1441-24

Helicoil gages Metric

Heli-Coil STI Thread Plug Gages (metric) for checking the tapped hole are listed below. The complete gage consists of the GO thread plug gage, the HI thread plug gage and the appropriately marked gage handle. Accuracy of the finished thread, when the insert is installed, is dependent upon the accuracy of the tapped hole. If the finished tapped hole gages satisfactorily, the installed insert will be within the thread tolerance. It is, therefore, not necessary to gage the installed insert. After the insert is installed, the GO thread plug gage may not enter freely; however, the insert will always seat itself when the bolt or screw is installed and tightened. (Reference MA1567) When gaging tapped holes which have been thoroughly cleaned or which have a protective finish applied, the gage should always be lubricated with light oil. The HI thread plug gage may enter provided that a definite drag results on or before the second turn of entry.

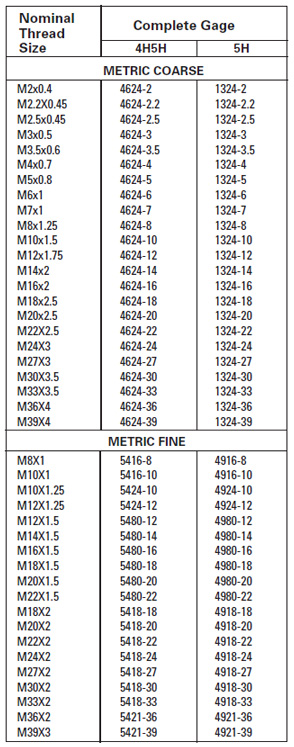

Nominal Thread Size Complete Gage 4H5H 5H Metric Coarse M2x0.4 4624-2 1324-2 M2.2x0.45 4624-2.2 1324-2.2 M2.5x0.45 4624-2.5 1324-2.5 M3x0.5 4624-3 1324-3 M3.5x0.6 4624-3.5 1324-3.5 M4x0.7 4624-4 1324-4 M5x0.8 4624-5 1324-5 M6x1 4624-6 1324-6 M7x1 4624-7 1324-7 M8x1.25 4624-8 1324-8 M10x1.5 4624-10 1324-10 M12x1.75 4624-12 1324-12 M14x2 4624-14 1324-14 M16x2 4624-16 1324-16 M18x2.5 4624-18 1324-18 M20x2.5 4624-20 1324-20 M22x2.5 4624-22 1324-22 M24x3 4624-24 1324-24 M27x3 4624-27 1324-27 M30x3.5 4624-30 1324-30 M33x3.5 4624-33 1324-33 M36x4 4624-36 1324-36 M39x4 4624-39 1324-39 Metric Fine M8x1 5416-8 4916-8 M10x1 5416-10 4916-10 M10x1.25 5416-10 4916-10 M12x1.25 5416-12 4916-12 M12x1.5 5416-12 4916-12 M14x1.5 5416-14 4916-14 M16x1.5 5416-16 4916-16 M18x1.5 5416-18 4916-18 M20x1.5 5416-20 4916-20 M22x1.5 5416-22 4916-22 M18x2 5416-18 4916-18 M20x2 5416-20 4916-20 M22x2 5416-22 4916-22 M24x2 5416-24 4916-24 M27x2 5416-27 4916-27 M30x2 5416-30 4916-30 M33x2 5416-33 4916-33 M36x2 5416-36 4916-36 M39x3 5416-39 4916-39
