Helicoil Thread Repair Kit Inch helicoil
PROFESSIONAL KITS

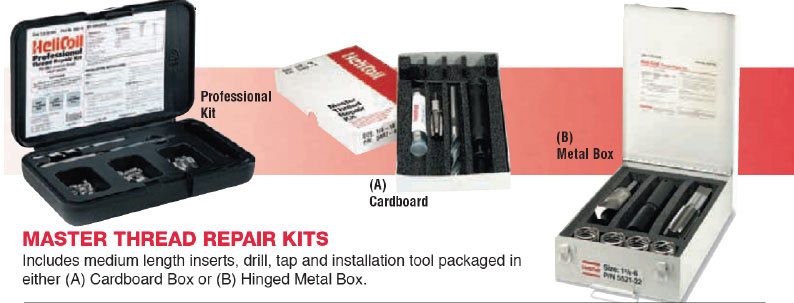

These kits include everything you need to do the job right - 3 lengths of inserts for multiple applications, drill, tap, installation tool and tang removal tool - all in a rugged new box.
Thread
Size
Kit
Part No.
Qty.
Insert, ea.
Length
REPLACEMENT INSERTS Tap Installation
Tool
Drill* Tang*
Removal
Tool Size
INCH COARSE Short 1 Dia. Medium 1-1/2 Dia. Long 2 Dia.
4-40 5401-04 12 1185-04CN112 1185-04CN168 1185-04CN224 04CPB 2288-04 #31 5/64
5-40 5401-05 12 1185-05CN125 1185-05CN188 1185-05CN250 05CPB 7551-05 #29 3/32
6-32 5401-06 12 1185-06CN138 1185-06CN207 1185-06CN207 06CPB 2288-06 #25 3/32
8-32 5401-2 12 1185-2CN164 1185-2CN246 1185-2CN246 2CPB 2288-2 11/64 1/8
10-24 5401-3 12 1185-3CN190 1185-3CN285 1185-3CN285 3CPB 2288-3 13/64 1/8
12-24 5401-1 12 1185-1CN216 1185-1CN328 1185-1CN328 1CPB 2288-1 15/64 5/32
1/4-20 5401-4 12 1185-4CN250 1185-4CN375 1185-4CN375 4CPB 2288-4 17/64 3/16
5/16-18 5401-5 12 1185-5CN312 1185-5CN469 1185-5CN469 5CPB 2288-5 21/64 7/32
3/8-16 5401-6 6 1185-6CN375 1185-6CN562 1185-6CN562 6CPB 2288-6 25/64 9/32
7/16-14 5401-7 6 1185-7CN438 1185-7CN656 1185-7CN656 7CPB 2288-7 29/64 11/32
1/2-13 5401-8 6 1185-8CN500 1185-8CN750 1185-8CN750 8CPB 2288-8 17/32 25/64
INCH FINE
6-40 5402-06 12 1191-06CN138 1191-06CN207 1191-06CN276 06FPB 7552-6 #25 3/32
8-36 5402-2 12 1191-2CN164 1191-2CN246 1191-2CN328 2FPB 7552-2 #17 1/8
10-32 5402-3 12 1191-3CN190 1191-3CN285 1191-3CN380 3FPB 7552-3 13/64 1/8
1/4-28 5402-4 12 1191-4CN250 1191-4CN375 1191-4CN500 4FPB 7552-4 17/64 3/16
5/16-24 5402-5 12 1191-5CN312 1191-5CN469 1191-5CN625 5FPB 7552-5 21/64 7/32
3/8-24 5402-6 6 1191-6CN375 1191-6CN562 1191-6CN562 6FPB 7552-6 25/64 9/32
7/16-20 5402-7 6 1191-7CN438 1191-7CN656 1191-7CN656 7FPB 7552-7 29/64 11/32
1/2-20 5402-8 6 1191-8CN500 1191-8CN750 1191-8CN750 8FPB 7552-8 33/64 25/64

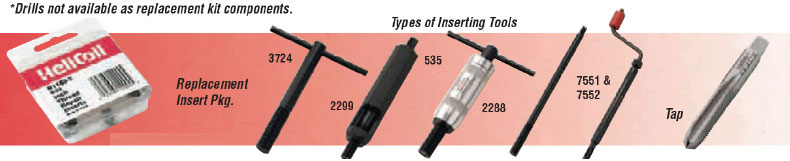

Helicoil
Thread
Size+Length
Kit
Part No.
Inserts
Per Kit
KIT CONTENTS & REPLACEMENT PARTS Drill*
Size
Box
Style
Tap
Part No.
Installation
Tool P/N
Insert
Pkg. P./N
Insert
Quantity
INCH COARSE
9/16-12x.844 5401-9 6 187-9 2288-9 R1185-9 6 19/32 A
5/8-11x.938 5401-10 6 8187-10 2288-10 R1185-10 6 21/32 A
3/4x1.125 5401-12 4 8187-12 2288-12 R1185-12 4 25/32 A
Thread
Size+Length
Kit
Part No.
Inserts
Per Kit
KIT CONTENTS & REPLACEMENT PARTS Drill*
Size
Box
Style
Tap
Part No.
Installation
Tool P/N
Insert
Pkg. P./N
Insert
Quantity
INCH COARSE
7/8-9x1.312 5521-14 6 8187-14 3724-14 K1185-14 1 29/32 B
1-8x1.500 5521-16 6 8187-16 3724-16 K1185-16 1 1 1/32 B
1 1/8-7x1.688 5521-18 5 8187-18 3724-18 K1185-18 1 1 5/32 B
1 1/4-7x1.875 5521-20 4 8187-20 3724-20 K1185-20 1 1 9/32 B
1 3/8-6x2.062 5521-22 4 8187-22 3724-22 K1185-22 1 1 13/32 B
1 1/2-6x2.250 5521-24 4 8187-24 3724-24 K1185-24 1 1 17/32 B
INCH FINE
9/16-18X.844 5402-9 6 38193-9 2299-9 R1191-9 6 37/64 A
5/8-18X.938 5402-10 6 8193-10 2299-10 R1191-10 6 41/64 A
3/4-16X1.125 5402-12 4 8193-12 2299-12 R1191-12 4 49/64 A
7/8-14X1.312 5402-14 6 8193-14 535-14 R1191-14 1 57/64 B
1-14X1.500 5402-16 6 8193-16 535-16 R1191-16 1 1 1/64 B
1-12X1.500 5402-161 6 8193-161 535-161 R1191-161 1 1 1/64 B
1 1/8-12X1.688 5402-18 5 8193-18 535-18 R1191-18 1 1 5/32 B
1 1/4-12X1.875 5402-20 4 8193-20 535-20 R1191-20 1 1 9/32 B
1 3/8-12X2.062 5402-22 4 8193-22 535-22 R1191-22 1 1 17/32 B
1 1/2-12X2.250 5402-24 4 8193-24 535-24 R1191-24 1 1 17/32 B
Helicoil
